Lay In Tile Ceiling System

Product Description

Product Description&Details:-

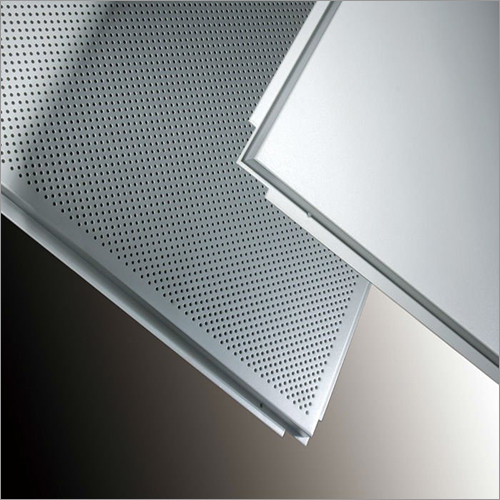

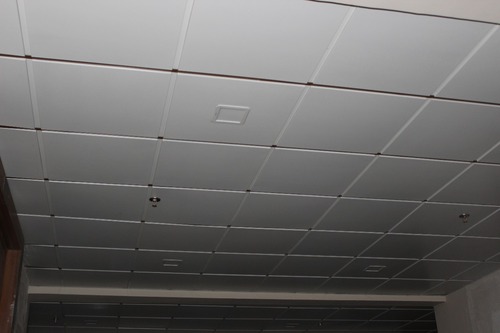

Lay in tile ceiling systemis the most using product across the metal ceiling market.

The visible 24mm, 15mm&silhouette grid make it more elegant and provoke too the

customer. Panels aredurable being aluminium\ galvanised, the versatile panels are

in different rang &sizes 575*575, 585*585, the system creates a modular arrangement of 600*600.Lay in tiles system is simple to install also very easy access the equipmentinstalled behind it.

2.     : -

Easy dimuon table tilessystem allows full access to services and equipment in plenum so can be usedanywhere commercially

A number of acoustic requirementscan be not with the introduction of an acoustic in Lay in the back of aperforated tile systems.

Lay-in tile systemprovides an economic solution to many ceiling requirements also provide dynamiclook to the ceiling.

Suspended metal ceiling isclassifiedin combustible due to galvanised\ aluminium core material;

it will therefore notcontribute to the possible fire.

3.     : -

Lay-in tiles galvanisedsteel of 0.40\0.45\0.50 mm thick and

aluminium0.65mm\0.70mm powder coated of 50-55 microns

coating steel 0.4mm TCT.

4.

575*575\ 585*585 squareand bevelled edge and come

in a module of 600*600 by

using the appropriate Tgrid of 24mm\15mm.

5.     : -

50-55       .

6.     Suspension: -

4mm dia. Galvanised rod,Galvanised\Aluminium

edge profile, RecommendedT grid

system according to thetile size, butterfly clip.
